- NeoTOP 1604 Topload Cartoner

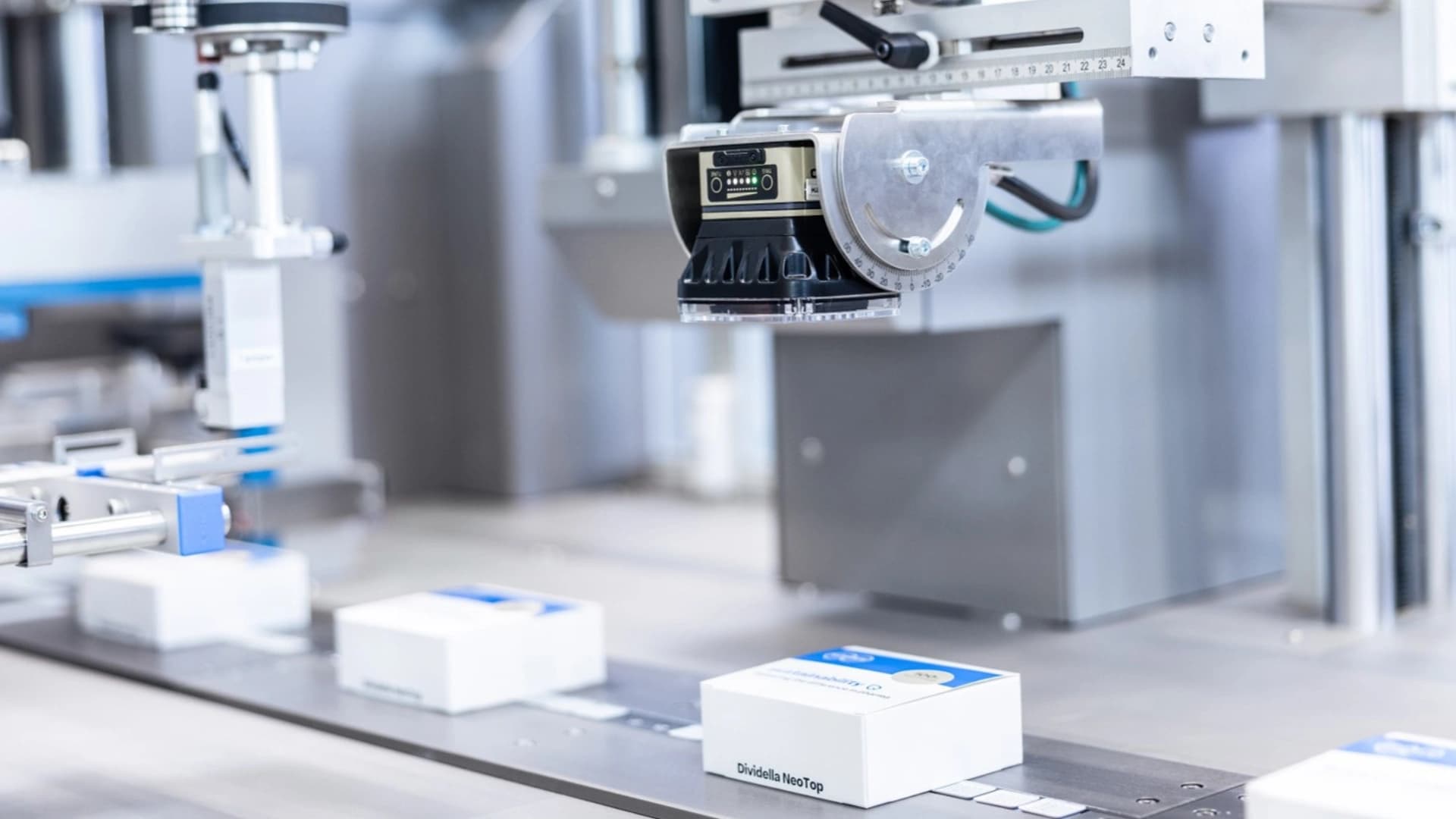

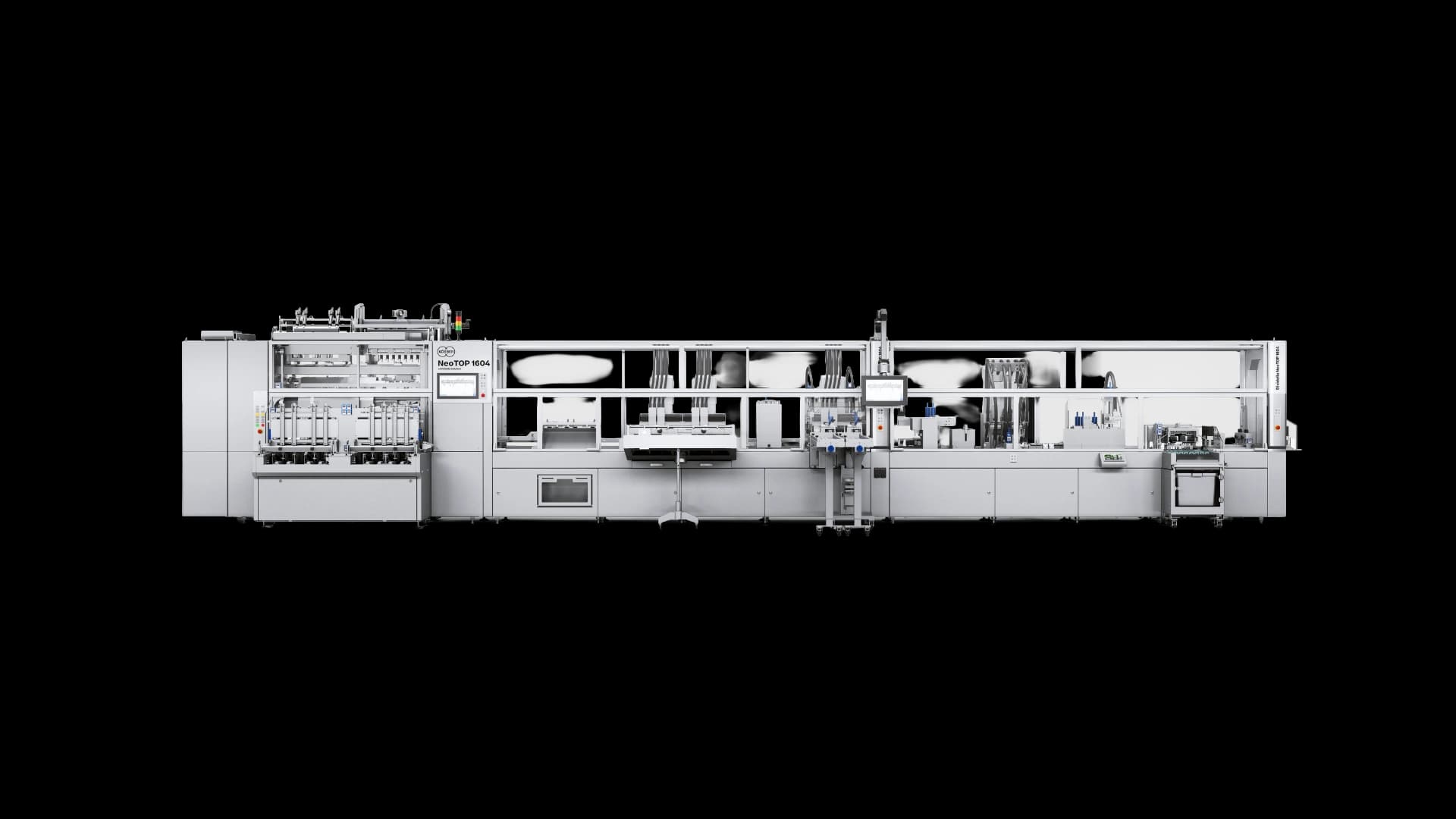

Dividella NeoTOP 1604
A high-speed modular topload cartoner for mid to large-scale pharmaceutical production, delivering flexible packaging, secure product handling, and up to 160 packs per minute.
Flexible, high-performance cartoning for demanding pharma needs
In numbers
Output
160 packs per minute
Achieve outputs of up to 160 packs per minute in dual mode operation - ideal for high-volume pharmaceutical production.
Annual capacity
16M packs per year
Complete line clearance and format changes with two operators in as little as 10 minutes.
Volume reduction
Up to 50% cut
Reduction in packaging volume, lowering storage, energy and shipping costs.
Modular configuration
M1-M9 modules
The machine features a modular design, allowing customers to select and combine the modules they need for maximum flexibility along the packaging lines.
Gentle handling and packaging of pharma containers
Körber offers secondary packaging solutions for all primary pharma containers, keeping compliance and safety during handling and transportation processes.
Ampoules
Gentle and high-speed handling for delicate glass containers to prevent breakage and preserve product integrity.
Pens
Careful loading and packaging for complex multi-dose injection pens, safeguarding mechanical dosing systems.
Syringes
Highly precise orientation and secure handling for pre-filled syringes.
Safety syringes
Controlled feeding engineered to protect sensitive built-in safety shields and needle mechanisms.
Vials
Stable, flexible packaging solutions designed to safeguard cap, label and glass stability.
Autoinjectors
Gentle handling of autoinjectors, protecting delicate spring and casing out components for self-dose systems.
Benefits
Compatible with a wide range of products
The system enables the creation of flexible combination packs, including ampoules, vials, syringes, pens, autoinjectors, and many other biologic and pharmaceutical products.
End-to-end integration capabilities
Support standalone machines, full line integration, or general contracting including upstream and downstream equipment.
Improved patient safety
Our solution features 100% post-loading verification and tamper-evident closures to guarantee product integrity and patient safety.
Late-stage customization
Our solution supports regional labeling, leaflet variations, and regulatory compliance without disrupting production.
Modular and scalable design
Expand or retrofit modules at any time to support new products, formats, or regulatory requirements without replacing the system.
Faster changeovers
Quickly switch between products with minimal downtime and disruptions.
Sustainable and durable solution
Uses recyclable cardboard packaging, reducing waste and high-precision Swiss engineering ensuring durability and robust performance.
End-to-end integration capabilities
Support standalone machines, full line integration, or general contracting including upstream and downstream equipment.
Applications
Dividella NeoTOP 1604 provides impact across different pharma packaging scenarios
Körber’s Dividella NeoTOP 1604 offers three levels of implementation to meet your needs: as a standalone machine, as part of a fully integrated line using your own equipment, or as a complete solution in which Körber manages everything—from design and engineering to integration of upstream and downstream systems.
The solution is designed for flexibility, scalability, and reliable performance across pharmaceutical applications, making it well suited for mid- to high-volume commercial packaging.
The Dividella NeoTOP 1604 supports large-scale production of parenteral products, including vials, ampoules, syringes, cartridges, and medical devices. With output of up to 160 packs per minute and capacity of up to 16 million packs per year, it delivers the throughput required for high-volume portfolios while maintaining consistent quality and operational efficiency.
Technical features
Format change and operation
- Tool-less format changes
- Changeover time: 10 to 45 minutes with two operators
- Digital displays with position feedback
- Logged setpoint changes for repeatability
- Lightweight format parts (max. 17 kg)
Machine design and handling
- Vacuum transfer system keeps cartons in a defined position throughout the process
- Access from both sides of the machine
- No scratching of cartons and no hidden areas, supporting GMP compliance
Verification and quality control
- 100% verification including:
- Carton code and carton form
- Partition code, form, and presence
- Product presence and feature identification
- Code and presence of additional components (e.g., booklets, labels)
- Final carton shape control
- Variable data inspection and serialization
Integration and connectivity
- Compatible with third-party equipment such as printers, labelers, and camera systems, and serialization systems
- Line optimizer ready
“With a speed of up to 160 cartons per minute, a high degree of machine flexibility and 100% monomaterial cardboard packaging, the Dividella NeoTOP 1604 meets some crucial requirements of our customers.”
Stefan Ehrne
Head of Engineering, Körber Pharma Packaging AG
The Körber advantage
+50
More than 50 customers worldwide rely on the Dividella NeoTOP platform.
Top 20
The top-20 big pharma companies and local players trust our solutions.
Since 1978
Körber pioneered top-load cartoning for the pharmaceutical industry and has been innovating in cartoning and packaging machinery for decades, with a large installed base worldwide.
Lifecycle support
We offer 24/7 global service, validation support, retrofits, and proactive obsolescence management to ensure long-term operability.
Case study
Catalent: Fast and flexible against Covid-19
Learn why Catalent, the world’s leading manufacturing partner, chose our Dividella NeoTOP packaging machines.
From Factory Acceptance Test (FAT) in Switzerland to installation start in the USA, discover how Körber completed the project in less than 30 days and supported Catalent’s tight production timeline.
Downloads
Documentation

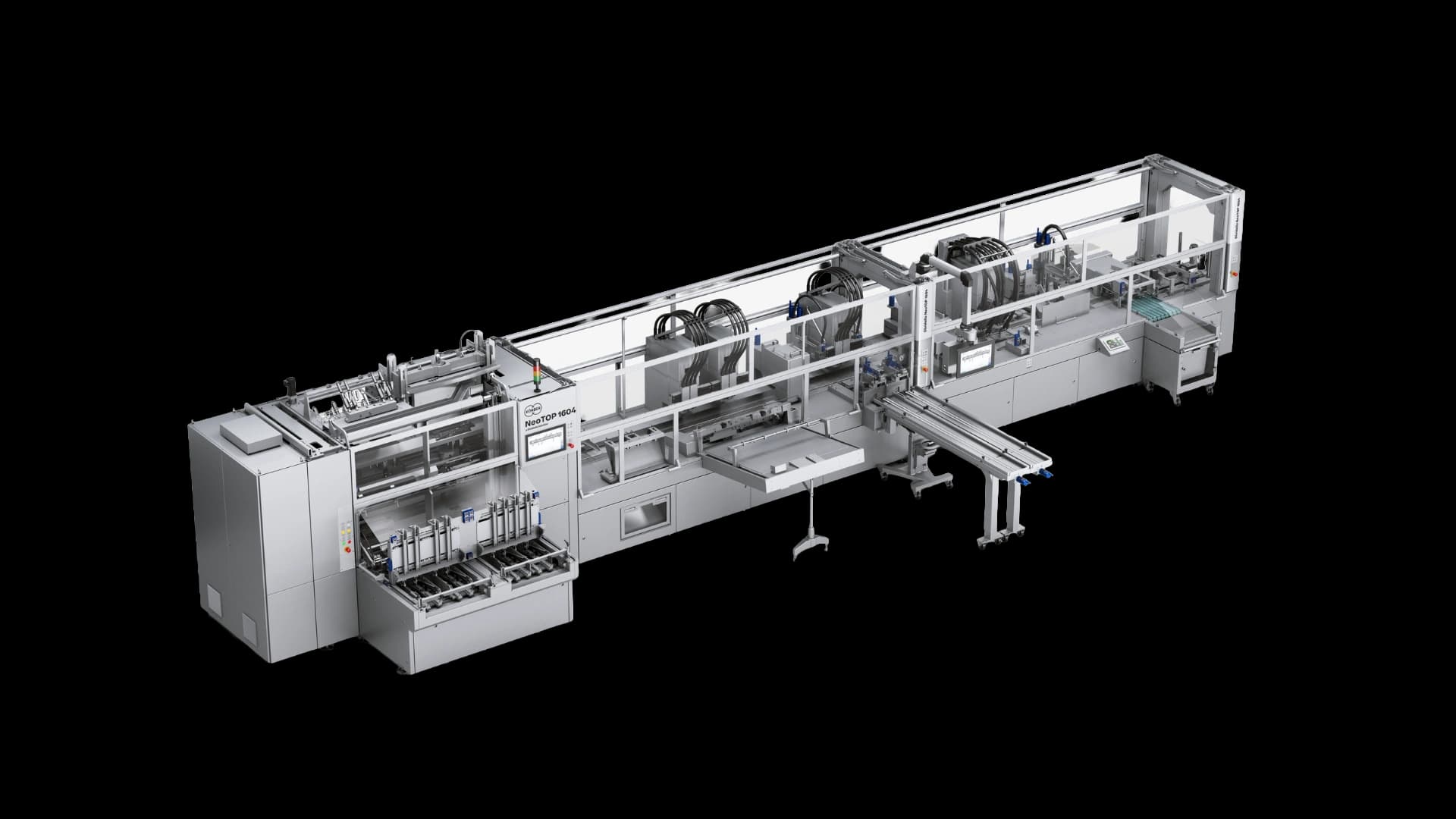

Dividella NeoTOP 1604
Discover Körber's modular pharmaceutical packaging machines Dividella NeoTOP 1604's value.
