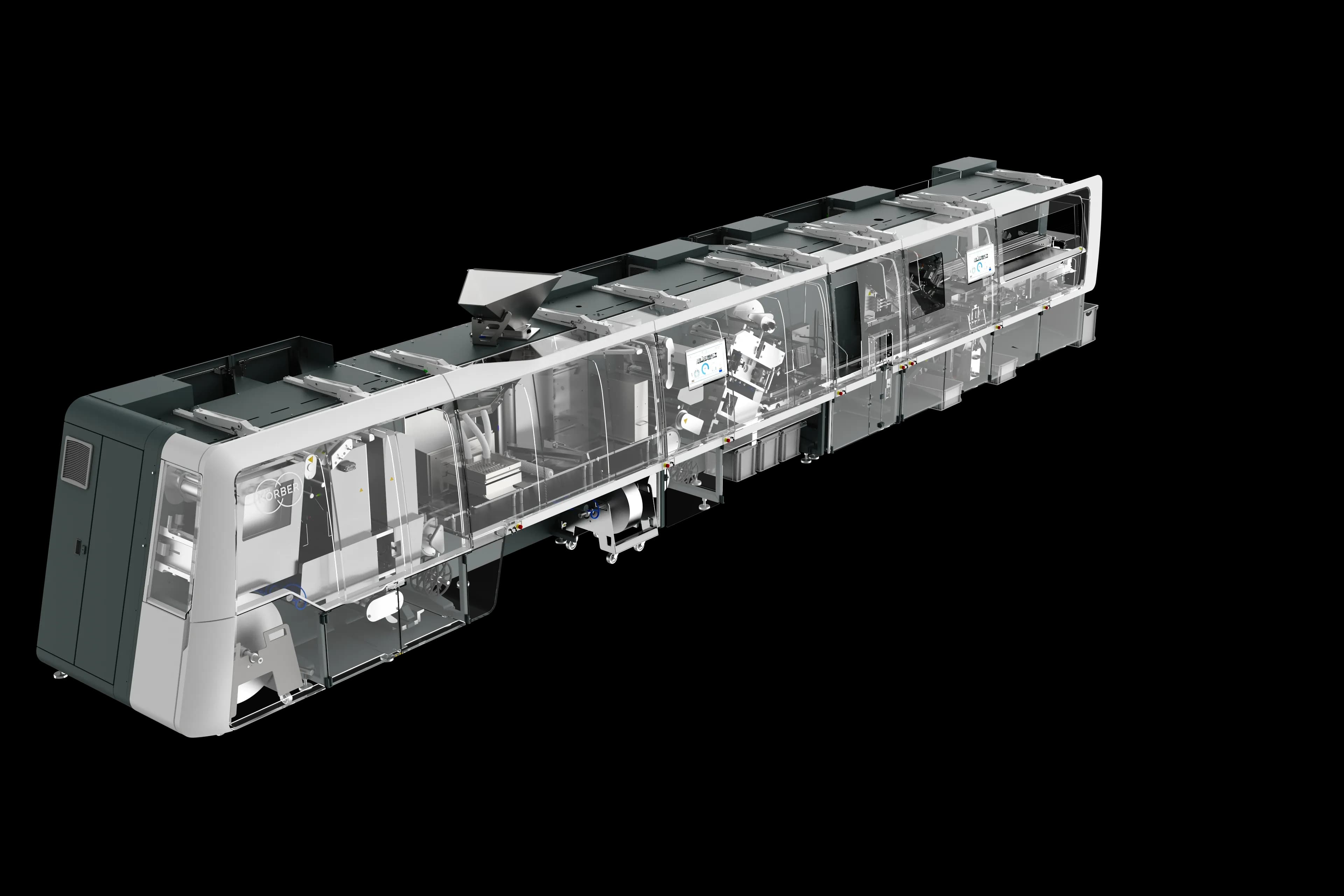

BE6 Blister Line Oral Solids

High-speed blister packaging

Get blistering performance you can rely on. The BE6 helps you increase output, reduce waste, and benefit from stable restarts and consistent, predictable production.

In numbers

Blisters

600/min

Stable production at up to 600 blisters per minute.

Width

120 mm

Broader application window than typical top-speed class machines.

Length

195 mm

This draw-off length achieves stability at high output and supports long blister formats.

Advanced features for high-speed stability

The BE6 processes a broad range of forming foils including PVC, PP, and aluminum-based laminated films. It supports alu hard, alu soft, and paper/Al lidding materials for diverse pharmaceutical requirements.

Minimum waste through shrinkage compensation

The BE6 uses adaptive, fully automatic inline adjustment of station positions to compensate for film shrinkage. This prevents quality-relevant defects that lead to faulty ejections after restarts, improving OEE in stop-start environments.

Validation-friendly sealing

Patented sealing technology combines roller sealing with an actively temperature-controlled core. This ensures constant sealing time independent of machine speed, meaning no new validation is necessary when changing production rates.

Functional design

Color-illuminated covers indicate zone activity while the large film roll is positioned on a trolley for ergonomic handling.

Feature	BE6
Max output	Up to 600 blisters/min
Blister width range	30–120 mm
Lane configuration	1–2 lanes
Blister length range	60–195 mm
Draw-off length	220 mm
Primary advantage	High-speed width flexibility
Best for	Mid-to-high speed production

In action

Watch how the BE6 works

We value your privacy.

We require your consent. This video is hosted by YouTube, a service of Google LLC (USA). When you watch the video, YouTube receives your IP address, can store cookies on your device, and link this activity to your user account. For this, you must accept YouTube cookies in the Cookie Settings. You can also select 'Accept all Cookies' and thereby consent to further cookies that allow us to make the website more user-friendly, analyze user behavior, and show you personalized advertising on other websites. You can revoke your consent at any time via the cookie settings link in our footer. Further information can be found in our Privacy Policy.

Benefits

Constant sealing quality

Patented sealing technology maintains stable results across changing speeds, eliminating the need for revalidation when output needs shift.

Higher uptime

An integrated storage box enables bottom foil changes on the fly without stopping production, supporting long and uninterrupted campaigns.

Reproducible changeovers

Ultra-light format parts, magnetic clamping, and guided workflows reduce manual fine-tuning and operator dependency for faster conversions.

Standardized operation

A smartphone-like HMI with customizable widgets and Pharma 4.0-ready interfaces ensures faster operator adoption and consistent shift performance.

Lower waste and stable restart

Automatic inline station adjustment compensates for film shrinkage during stops to prevent defects and reduce restart scrap after machine starts.

Downloads

Documentation

Brochure: BE6

Discover the benefits from BE6 blister line machine.
