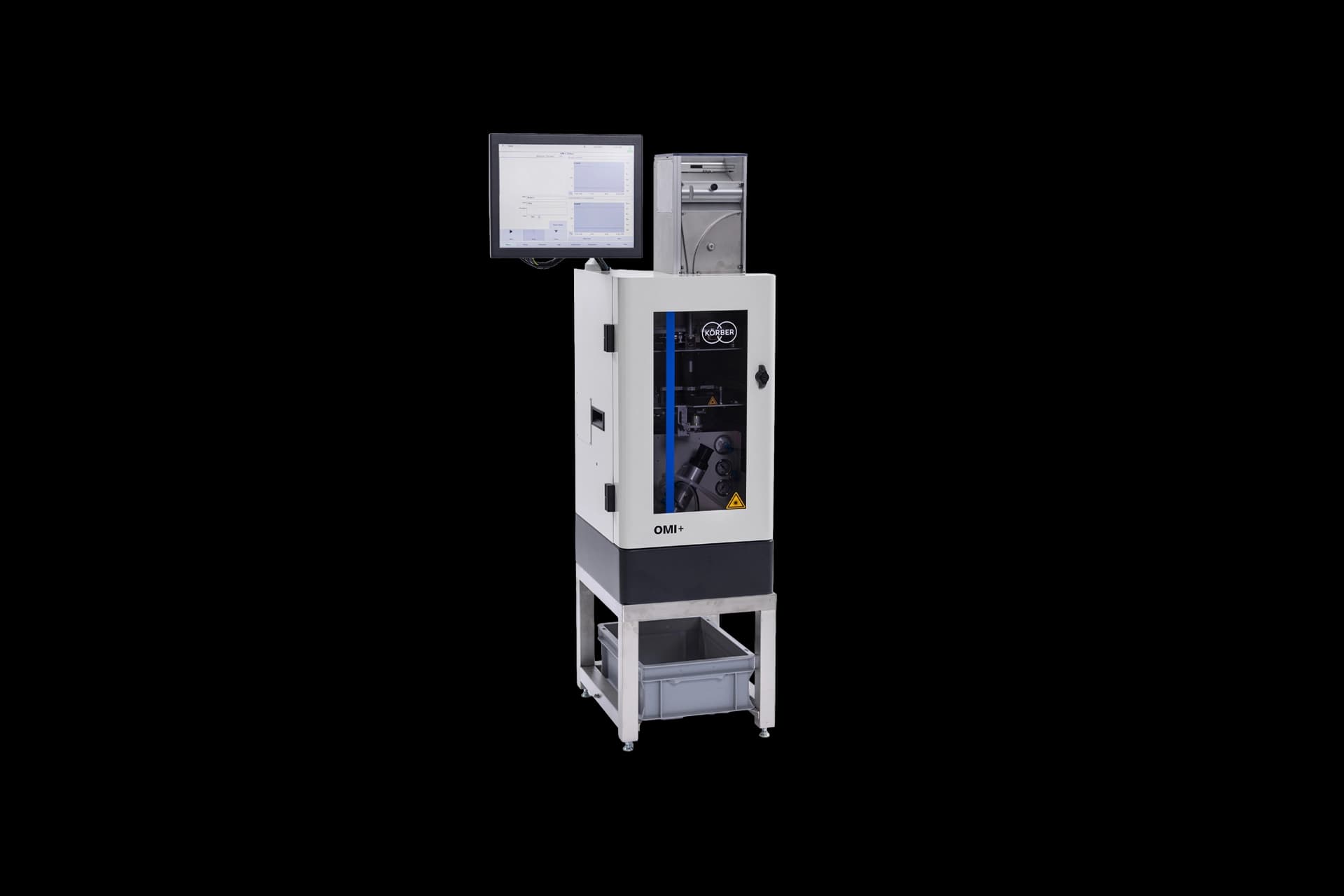

OMI+ shop-floor test station

Lab accuracy on the shop floor

Save time by testing directly at the maker. The OMI+ offers single-button testing and auto-calibration to ensure your products meet quality standards instantly.

In numbers

Weight range

0-2g

Ensure consistent yields with precise weight measurement for individual cigarettes and filter rods.

Versatility

150 mm

Handle a wide variety of production formats with support for filter rods up to 150 mm in length.

Precision

0.01 mm

Achieve high-precision circumference and diameter measurements for individual rods with non-contact technology according to ISO 2971.

Specifications

Technical data

The OMI+ is designed to support high-speed manufacturing with ISO-compliant measurement tools for pressure drop, ventilation, and physical dimensions.

Specification	Value
Dimensions (H x W x D)	1,435 x 385 x 465 mm (no optional measurement)
Power supply	100-240 V, 50/60 Hz
Compressed air supply	4.2 bar, clean, dry instrument air
Measurements	Weight, circumference / diameter, PDe or Ventilation, PDo, PDc
Statistics	Mean, min, max, SD, C of V, number of rods
User interface	Color LCD touchscreen

Measurement range
Small diameter version	5.0-7.1 mm
Standard diameter version	7.1-9.0 mm
Product length (Filters)	60-150 mm
Product length (Cigarettes)	60-130 mm
User interface	Color LCD touchscreen

Weight module (individual)
Parameter	Individual cigarette or filter rod weight
Measurement method	Load cell
Units of measurement	g or mg
Measuring range	0-2 g

Circumference/diameter module
Parameter	Circ/diam. of individual rods. Ovality and aspect ratio (max-min derived)
Measurement method	non contact measurement as per ISO 2971
Units of measurement	mm
Measuring range	5 - 9 mm diameter
Resolution (displayed)	0.01 mm
Accuracy	±0.01 mm diameter
Repeatability	±0.01 mm diameter
Reproducibility	±0.02 mm diameter

Pressure drop module
Parameter	PDe Fully encapsulated pressure drop
Measurement method	Vacuum induced flow controlled by CFO per ISO6565
Units of measurement	mmWG or KPa
Measuring range	10 - 2000 mmWG
Resolution (displayed)	1 mmWG
Accuracy	±1 mmWG or ±1.0 % of measurement, whichever >
Repeatability	±2 mmWG or ±1.0 % of measurement, whichever >
Reproducibility	±2 mmWG or ±1.0 % of measurement, whichever >

Ventilation module
Parameter	Tip, tobacco column, and total ventilation, PDo, PDc
Measurement method	Vacuum induced flow controlled by CFO per ISO9512
Units of measurement	% ventilation
Measuring range	0 - 100 %
Accuracy	±1.0 % F.S.D.
Repeatability	±1.0 % F.S.D.
Reproducibility	±1.0 % F.S.D.

Specifications are subject to change without prior notice. Alterations of design are reserved.
