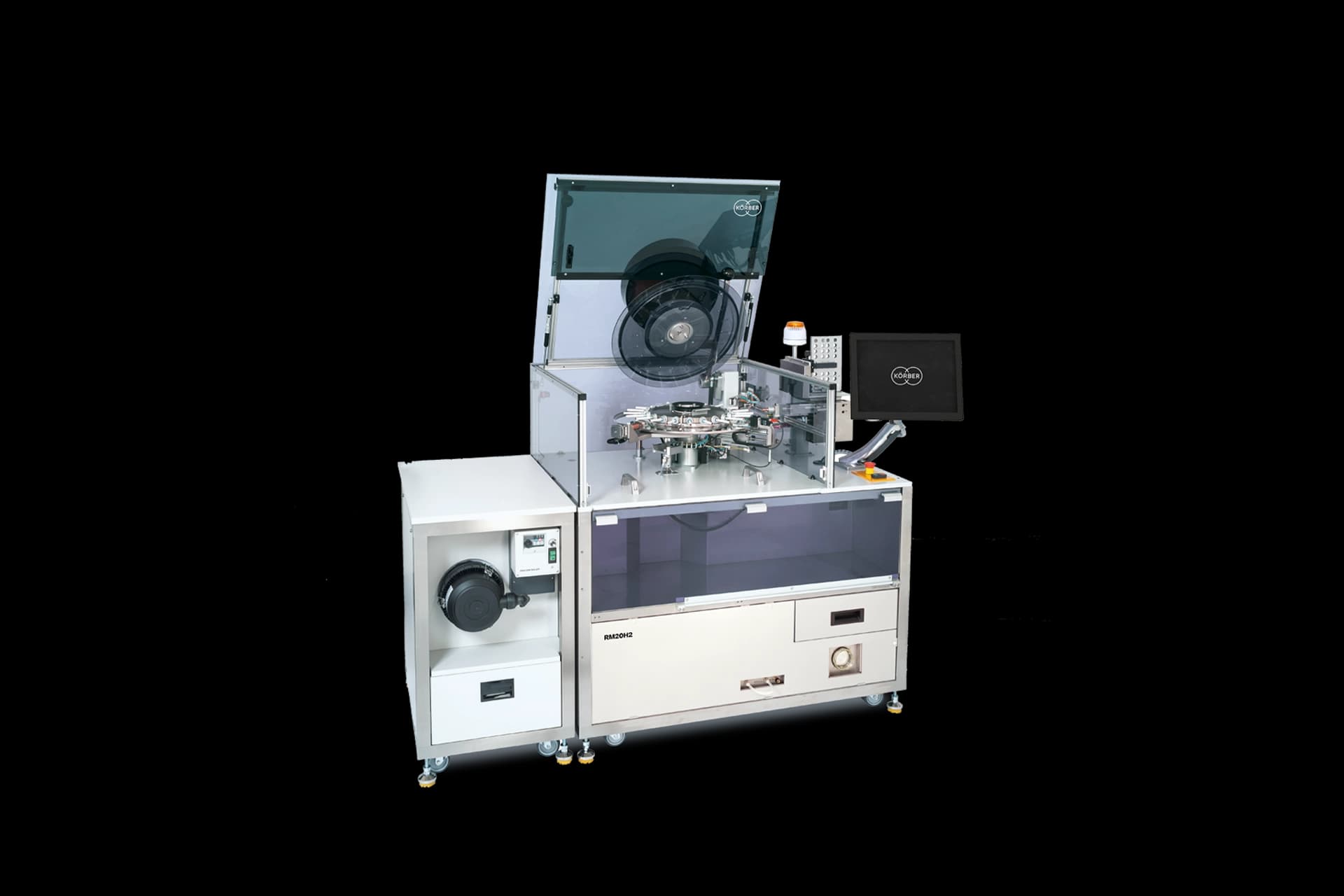

RM20H2 Rotary Smoking Machine

Flexible smoke analysis

Meet ISO standards for routine and fine-cut smoking. This versatile system handles impingers, filters, and electrostatic traps to adapt to your research needs.

In numbers

Capacity

20 ports

The machine features a 20-port smoking ring to process samples efficiently.

Throughput

400

You can smoke approximately 400 cigarettes during a standard 8-hour shift.

Versatility

4.5-9

The loader easily adjusts to fit cigarette diameters between 4.5 mm and 9 mm.

Puff volume

140 ml

The system handles a maximum puff volume of 140 ml for different testing needs.

Specifications

Technical data

Review the technical details, dimensions, and installation requirements for the RM20H2 below.

Specification	Value
Required floor space with/without mobile exhaust unit	approx. 4 m² / approx. 3 m²
Footprint without exhaust unit [H x W x D]	approx. 1390 x 1630 x 780 mm
Footprint with exhaust unit [H x W x D]	approx. 1390 x 1630 x 780 mm
Total weight smoking machine	approx. 210 kg
Total weight exhaust unit	approx. 75 kg
Power supply	100-230 VAC, 50/60 Hz
Power consumption	400 VA
Compressed air supply	6-8 bar
Compressed air consumption	max. 50 l/min.
Exhaust port	PVC pipe DIN 19560, DN 75
Exhaust air	approx. 40 m³/h
Cigarette length	65-120 mm (max. 100 mm for automatic loading)
Cigarette diameter	4.5-9 mm
Lighter power	50-120 W
Puff volume	max. 140 ml
Puff frequency	0.5-4 puffs/min*
Puff duration	1.0-10.0 s
Puff profile	1 x ISO bell-shape; 9 x user definable
Number of cigarettes/smoke run	20 at 1 puff/min; 10 at 2 puffs/min; 5 at 3 puffs/min
Capacity	approx. 400 cigarettes per 8 hours
Communication	Ethernet, USB

*Puff frequency and puff duration are interdependent and dependent on the number of cigarettes. Specifications are subject to change without prior notice. Alterations of design are reserved.
