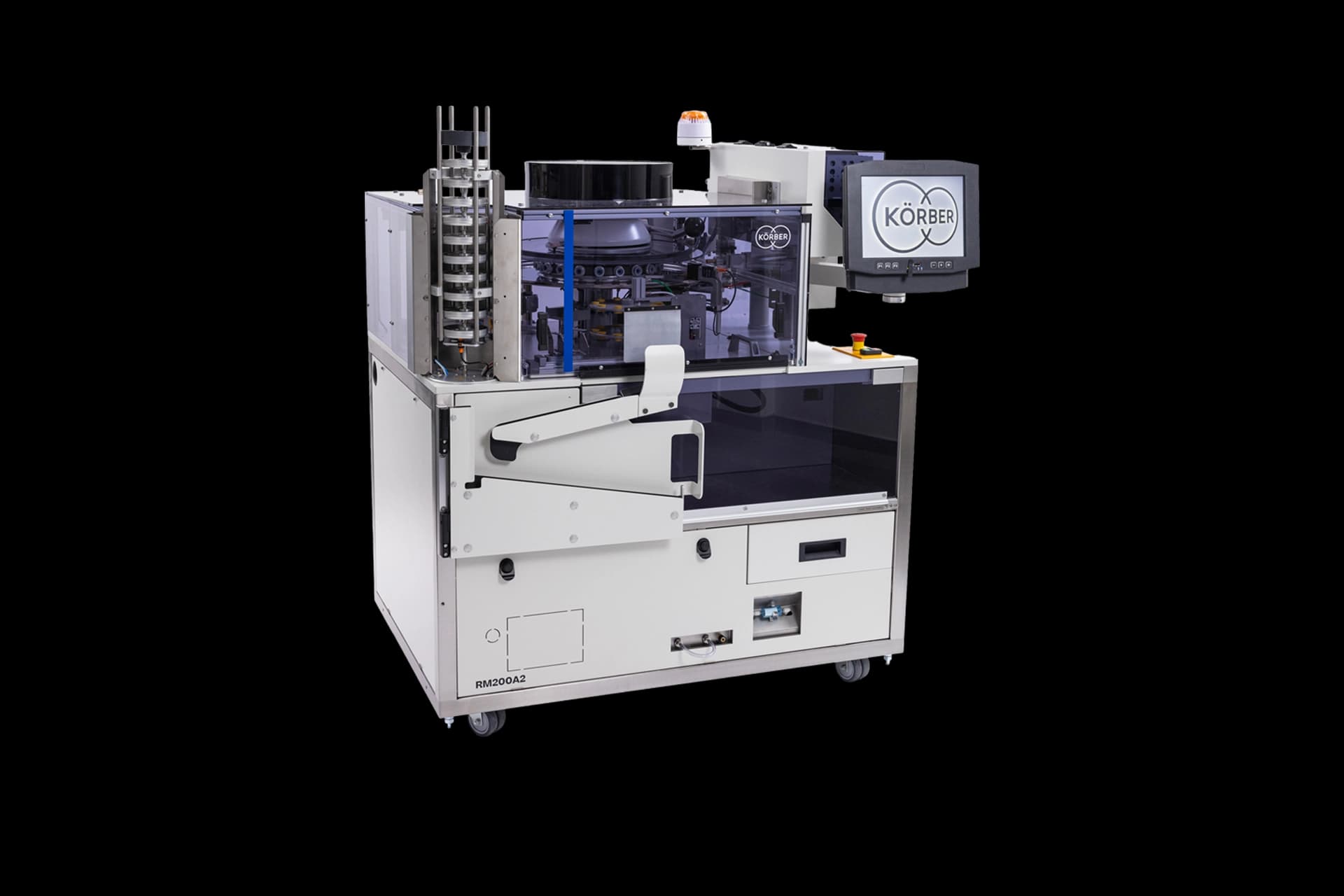

RM200A2 Rotary Smoking Machine

Hands-free routine testing

This machine automatically manages cassettes and filters to perform 10 consecutive runs on its own. It comes preinstalled with standard ISO and intense smoking methods.

In numbers

Capacity

600

Process approximately 600 cigarettes in a standard eight-hour shift.

Autonomy

Complete 10 consecutive smoke runs with no operator interference.

Flexibility

120 mm

Handle cigarette lengths up to 120 mm with automatic loading.

Efficiency

The rotary design uses 20 ports for consistent data collection.

Specifications

Technical data

Review the detailed performance data and dimensions for the RM200A2 rotary smoking machine below.

Specification	Value
Required floor space with/without mobile exhaust unit	approx. 4 m²/approx. 3 m²
Footprint without exhaust unit [H x W x D]	approx. 1390 x 1390 x 1100 mm
Footprint with exhaust unit [H x W x D]	1780 x 795 mm (without monitor support arm)
Total weight smoking machine	approx. 210 kg
Total weight exhaust unit	approx. 75 kg
Power supply	100-230 VAC, 50/60 Hz
Power consumption	400 VA
Compressed air supply	6-8 bar
Compressed air consumption	max. 50 l/minute
Exhaust port	PVC pipe DIN 19560, DN 75
Exhaust air	approx. 40 m³/h
Cigarette length	65-120 mm (max. 100 for automatic loading)
Cigarette diameter	4.5-9 mm
Lighter power	50-120 W
Puff volume	max. 150 ml
Puff frequency	1-4 puffs/minute*
Puff duration	1.0-10.0 s
Puff profile	1 x ISO bell shape, 9 x user definable
Number of cigarettes/smoke run	20 at 1 puff/minute; 10 at 2 puffs/minute; 5 at 3 puffs/minute
Capacity	approx. 600 cigarettes per 8 hours
Communication	Ethernet, USB

*Puff frequency and puff duration are interdependent and dependent on the number of cigarettes. Specifications are subject to change without prior notice. Alterations of design are reserved.
