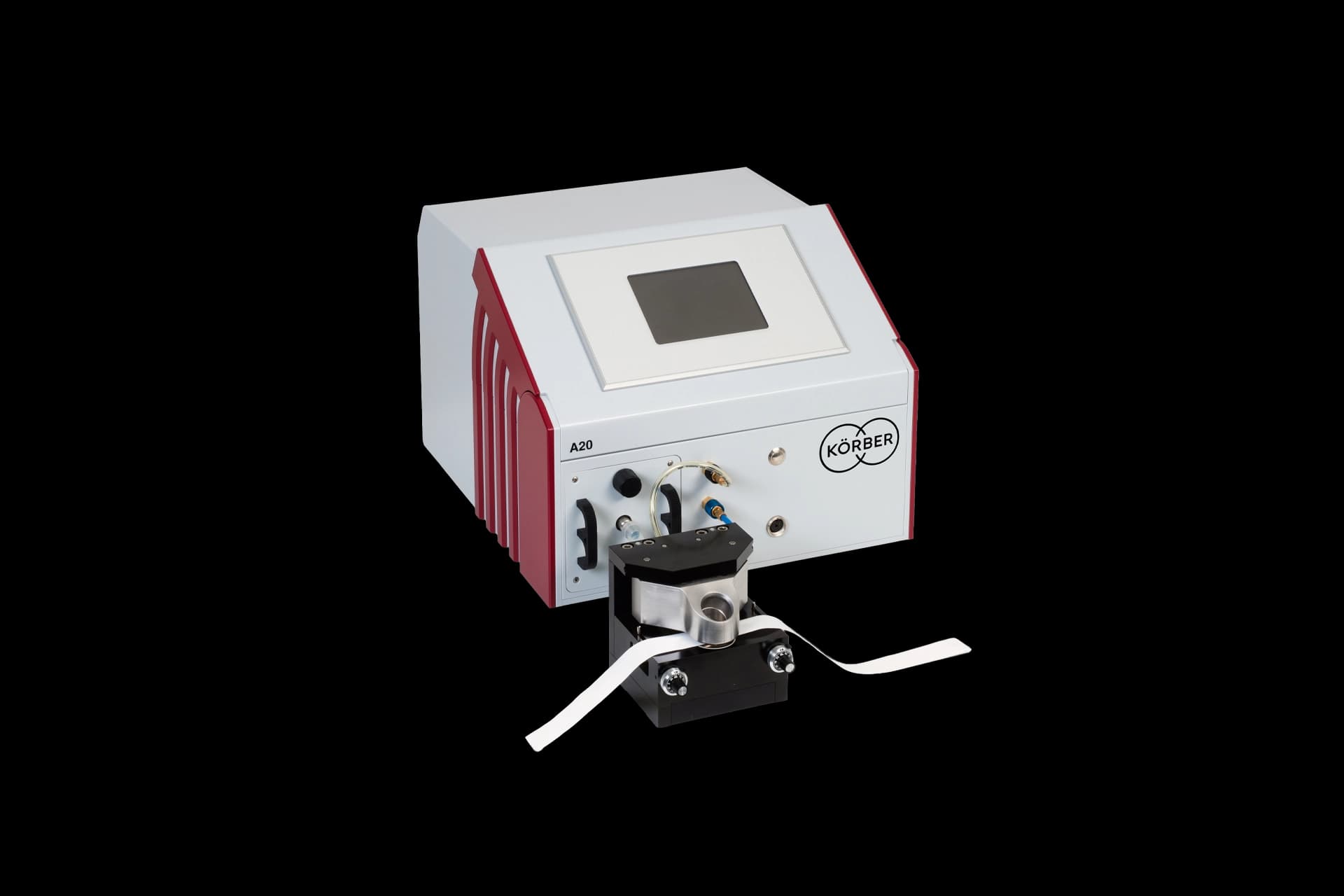

A20 Air Permeability Tester

Flexible quality control

The A20 adapts to your needs with interchangeable flow elements. It delivers fast, automatic, and ISO-compliant results for reliable material inspection.

In numbers

Measuring range

2 - 65,000 ml/min

The unit covers a broad spectrum of paper types with a range of 2 to 65,000 ml/min.

Precision

Ensure data reliability with measurement precision of 2% for values between 10 and 65,000 ml/min.

Automation

999

The optional paper tractor allows you to run up to 999 measurements automatically.

Compliance

ISO 2965

The system is fully compliant with ISO 2965 and supports ISO 9000ff testing standards.

Specifications

Technical data

Designed for both laboratory analysis and production floor monitoring, the A20 provides robust capabilities for paper testing.

Specification	Value
Total measuring range	approx. 2-65.000ml/min
Predefined LFE units	LFE A: approx. 2-700ml/min LFE B: approx. 100-10,000ml/min LFE C: approx. 7,000-65,000ml/min*
Measurement precision	2% of measured value between 10 ml/min and 50,000 ml/min. Below 10 ml/min 10% of measured value in correlation with the calibration standard. Results between 50,000ml/min and 65,000ml/min are linear extrapolated.
Measuring heads	10 mm x 20 mm, rectangular 2 mm x 15 mm, rectangular (Others are available upon request.)
Total dimensions [H x W x D]	approx. 400 x 400 x 430 mm, excl. measuring head
Space required	600 x 700 mm
Weight	approx. 20 kg
Power supply	100-230 V, 50-60 Hz
Load	max. 50 VA
Compressed air supply	5, non-lubricated and dry
Measuring air consumption	max. 80 l/min
Interface	1 x RS232 4 x USB 1 x Ethernet

Automatic paper tractor
Total dimensions [H x W x D]	approx. 260 x 130 x 120 mm
Weight (Tractor)	approx. 2 kg
Number of measurements	1-999, adjustable
Distance between 2 measurements	1-999 mm, adjustable
Transport speed	15, 30, 60, 90, 120, 150 mm/s
Positioning accuracy	for example < 1 mm at a speed of 30 mm/s (it depends on the speed and the paper)
Capacity of paper container	approx. 5 meter of paper
Paper width	max. 34 mm

*Calibration standards available within the range of 5-50,000 ml/min.
