MS
The MS supports high-performance automated inspection for vials, ampoules, and cartridges at a platform-dependent throughput of up to 600 containers per minute combining commercial throughput with a compact footprint and modular inspection technologies.
High-speed, space-efficient inspection for stable containers
Benefits
Balanced footprint & capacity
Combine platform-dependent throughput of up to 600 containers per minute with a compact footprint of 1400 x 1500 mm.
Commercial line speed
Support commercial operations with platform-dependent throughput of up to 600 containers per minute for container diameters up to 52 mm.
Modular inspection technologies
Configure inspection workflows with technologies such as HVLD Slim, Bubble-X, and 3D inspection depending on product and application requirements.

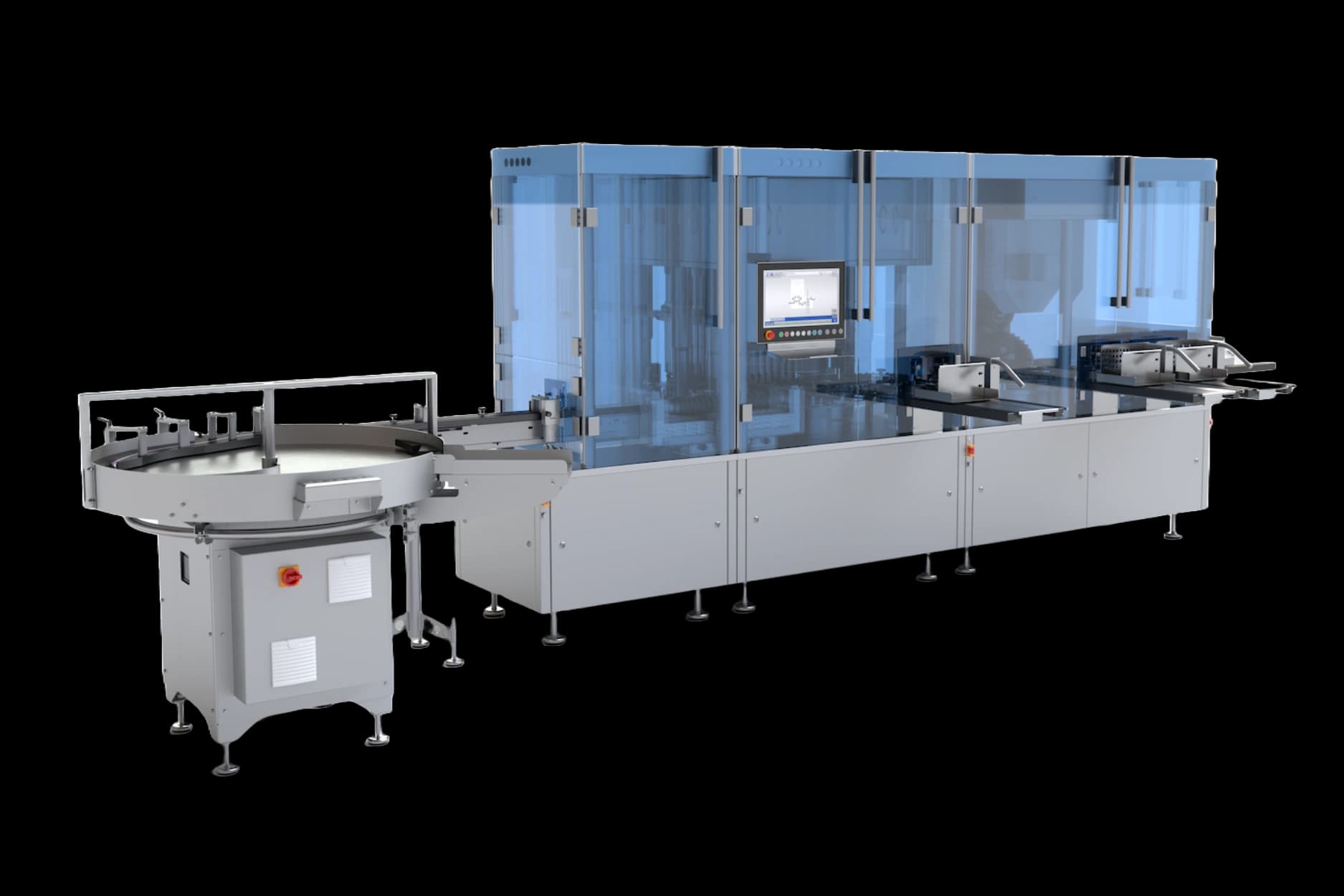

MS platform for stable containers
The MS is designed for automated inspection applications when throughput, footprint and flexibility need to stay in balance.
Key features:
- Up to 600 containers per minute on a 1400 × 1500 mm footprint, depending on application and configuration
- Up to 9 camera stations, including 6 in the carousel
- Up to 10 outfeeds to support downstream sorting
- Integration options for HVLD Slim, UpsideDown, Bubble-X, and 3D inspection
- Support for liquid and lyophilized products in vials, ampoules, and cartridges
- AI ready configuration options, where applicable
Capabilities
Compact high-speed platform
MS combines commercial throughput, compact footprint, and modular inspection capability for stable containers.
Specifications
MS in action
Watch how the MS inspection machine supports high-speed inspection workflows and stable container handling.
Downloads
Documentation
Factsheet: High performance inspection for stable containers.
Learn more about the MS platform.
